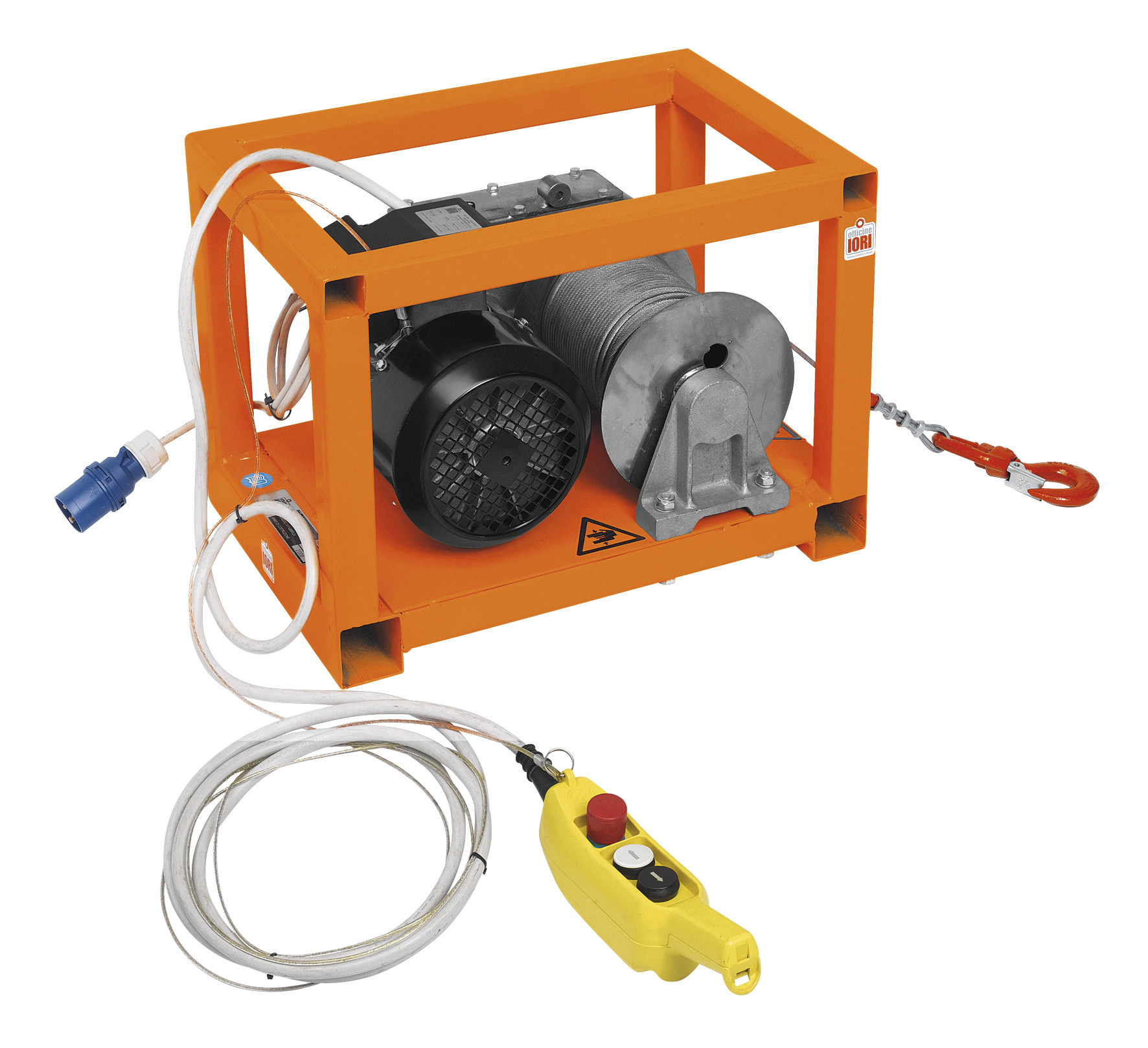

DM 200APQ - DT 200APQ

Hoisting and pulling winches

Techinical data
  DM 200APQ DT 200APQ
Safe working load kg 200 kg 200
Weight of the hoist kg 60 kg 59
Lifting speed m/min 21 m/min 21
Electric motor single-phase three-phase
Power kW 0,75 kW 0,75
Current intensity A 6,5 A 6,8/3,9
Voltage V 230 V 230/400
Frequency Hz 50 Hz 50
Rotor shaft angular speed giri/min 1400 giri/min 1400
Reduction ratio 1:25,5 1:25,5
Ø non-rotating wire rope mm 5 mm 5
Breaking load kN 17 kN 17
Lenght of the rope m 25 m 25
Max lenght of the rope m 40 m 40
Lenght 530 530
Width 360 360
Height 380 380
