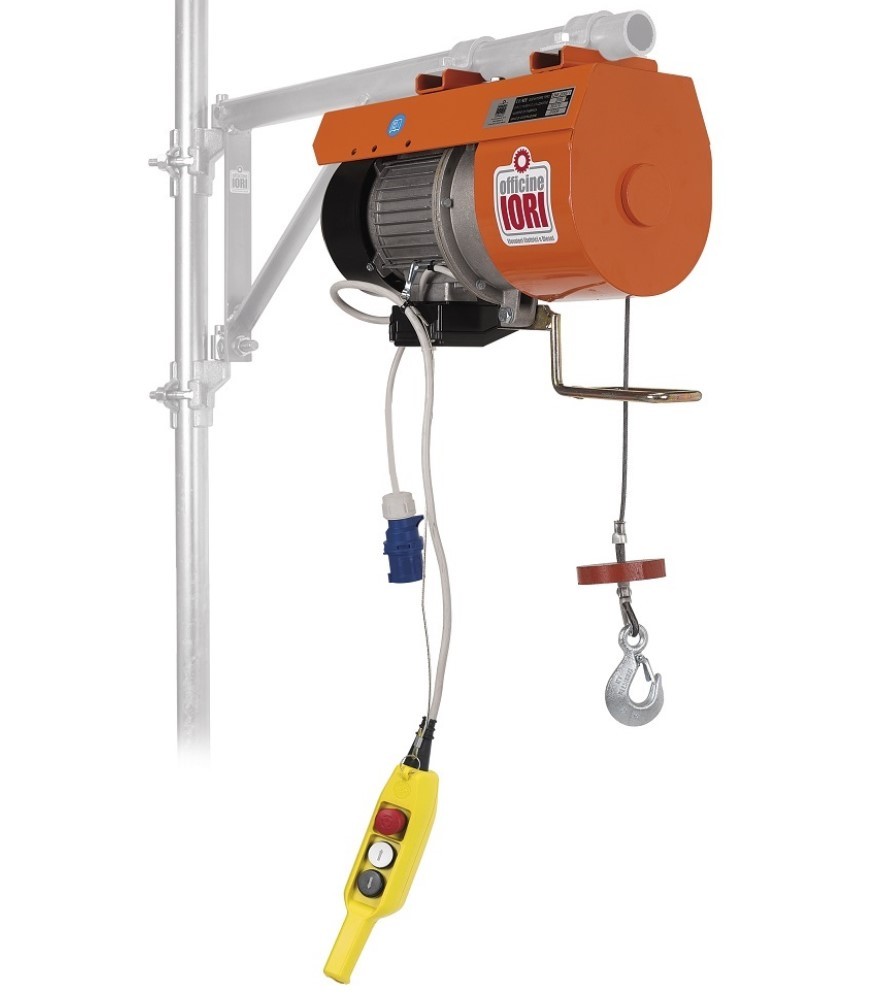

DM 150I VELOX - DM 200I VELOX

Hoists with bracket and clamps

When the job must be finished in a short time : the hoisting speed and the working height 40 m make this hoist the best choice.

Techinical data
  DM 150I VELOX DM 200I VELOX
Safe working load kg 150 kg 200
Weight of the hoist kg 40 kg 43
Lifting speed m/min 38 m/min 38
Electric motor single-phase monofase
Power kW 1,1 kW 1,45
Current intensity A 6,5 A 7,5
Voltage V 230 V 230
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:19 1:19
Ø non-rotating wire rope mm 5 mm 5
Breaking load kN 17 kN 17
Lenght of the rope m 40 m 40
Max lenght of the rope m 50 m 50
Lenght 510 510
Width 300 300
Height 385 385
