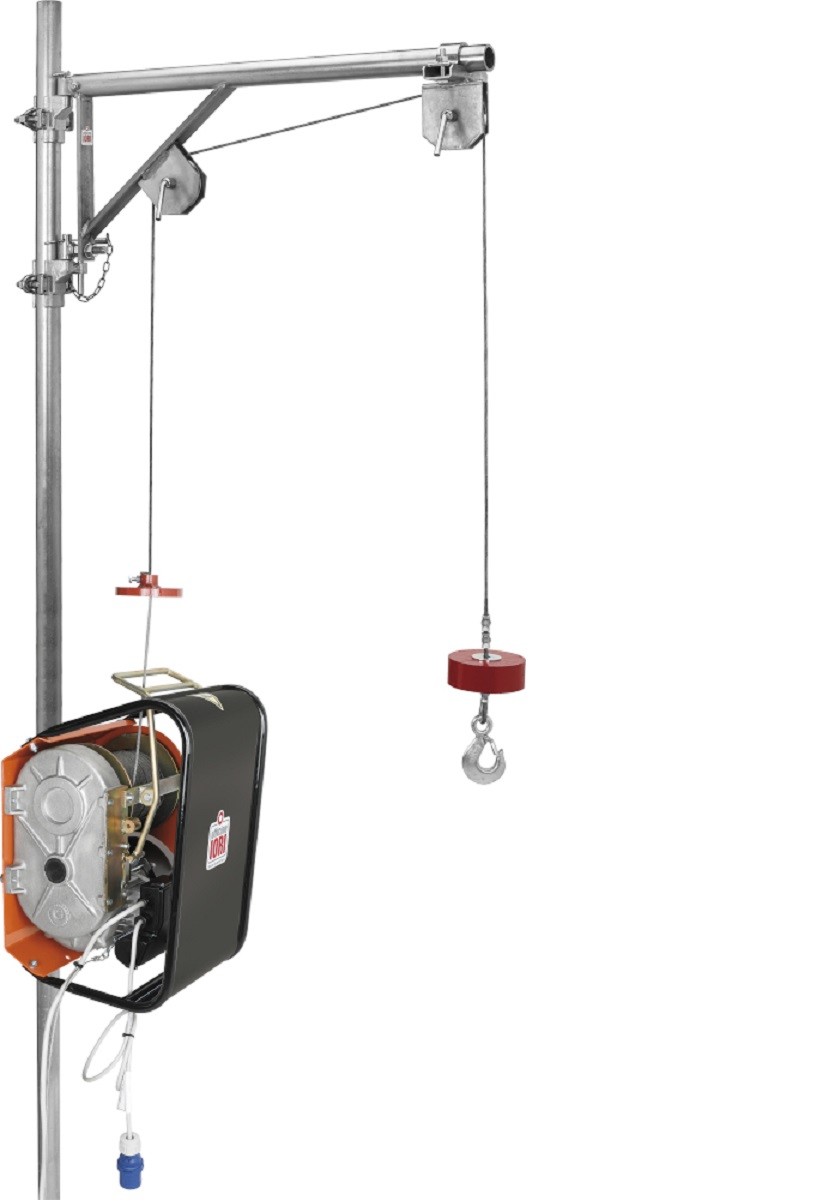

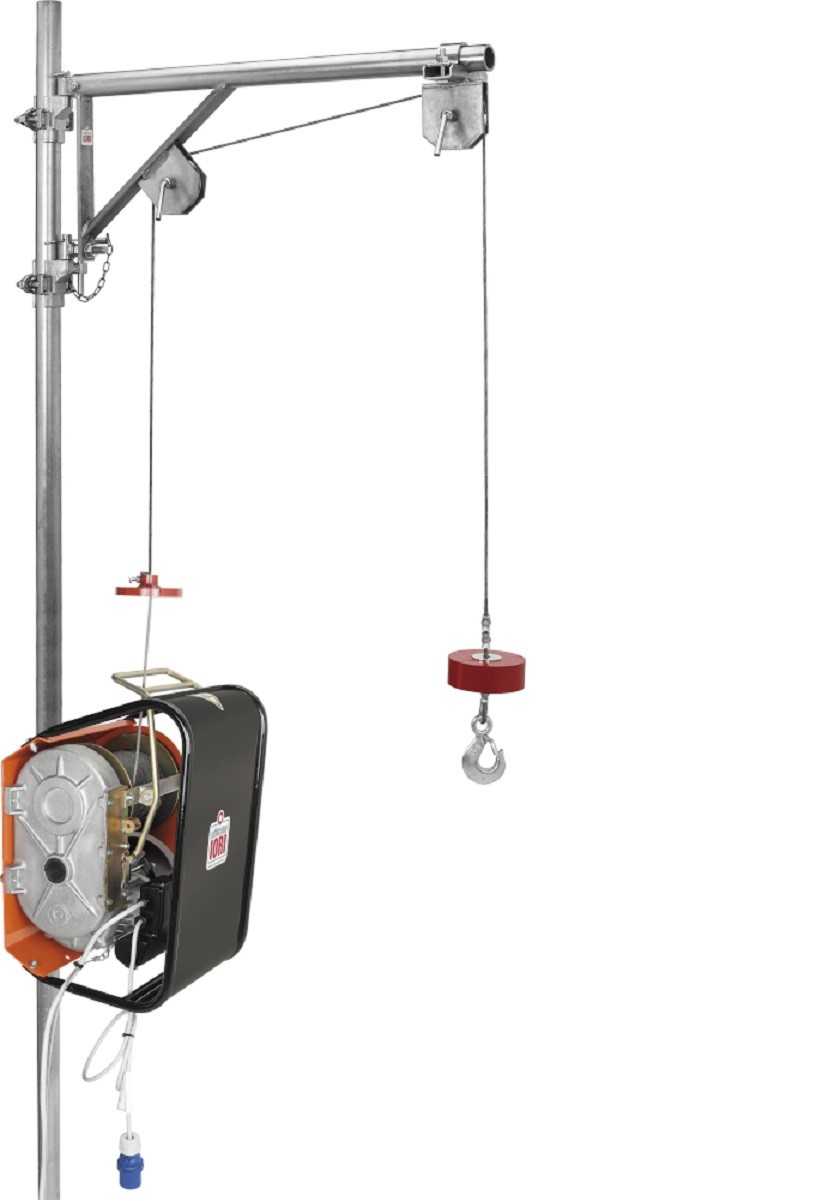

DM 200APP

Scaffolding hoists

You can install the hoist quickly at the base of the scaffold and put it into operation just placing the easy-moving bracket.

Techinical data
  DM 200APP
Safe working load kg 200
Weight of the hoist kg 65
Lifting speed m/min 21
Electric motor single-phase
Power kW 0,85
Current intensity A 6,5
Voltage V 230
Frequency Hz 50
Rotor shaft angular speed rpm 1400
Reduction ratio 1:25,56
Ø non-rotating wire rope mm 5
Breaking load kN 17
Lenght of the rope m 25x2
Max lenght of the rope m 30x2
Lenght 570
Width 350
Height 430
